Automatic Lubrication System for Rotary Blast Hole Drill Rigs

I. Overview of Automatic Lubrication System for Rotary Drill Rigs

Rotary blast hole drill rigs are widely used in mining, tunneling, and energy industries. These machines operate under extremely harsh working conditions, including high dust levels, heavy vibration, and continuous high-load operation.

An automatic lubrication system (centralized lubrication system) ensures continuous and precise lubrication of all critical components, significantly improving equipment reliability and reducing maintenance costs.

II. Lubrication Point Analysis of Rotary Blast Hole Drill Rigs

1. Main Lubrication Points

Typical rotary drill rigs include the following lubrication points:

Rotation mechanism (slewing bearing, gears)

Feed system (guide rails, sliding components)

Drill rod connection points

Bearing systems (main shaft bearings, rolling bearings)

Chains and transmission components

Hydraulic auxiliary lubrication points

Typical number of lubrication points: 15–30 (depending on model configuration)

2. Problems with Manual Lubrication

Uneven lubrication and missed lubrication points

Over-lubrication or under-lubrication causing wear or waste

Safety risks due to high-position lubrication points

Dust contamination affecting grease quality

Frequent downtime and high maintenance cost

Conclusion: Manual lubrication cannot meet the requirements of modern mining equipment.

III. Automatic Lubrication System Configuration for Drill Rigs

1. Recommended System Types

For harsh mining environments, the following systems are recommended:

Centralized lubrication system

Single-line lubrication system

2. System Components

A typical configuration includes:

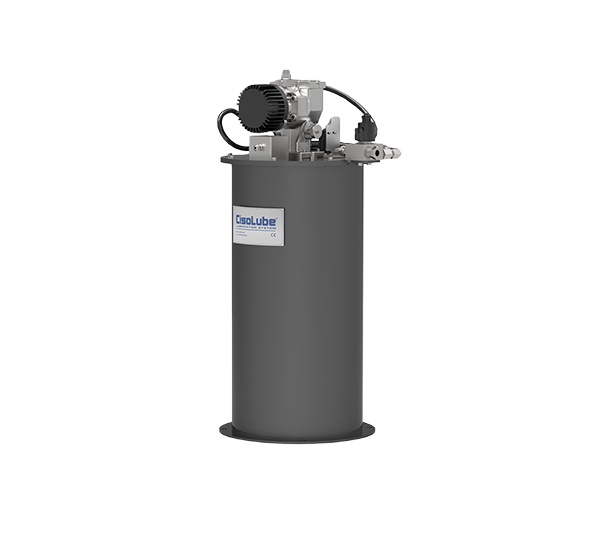

Lubestar electric grease pump

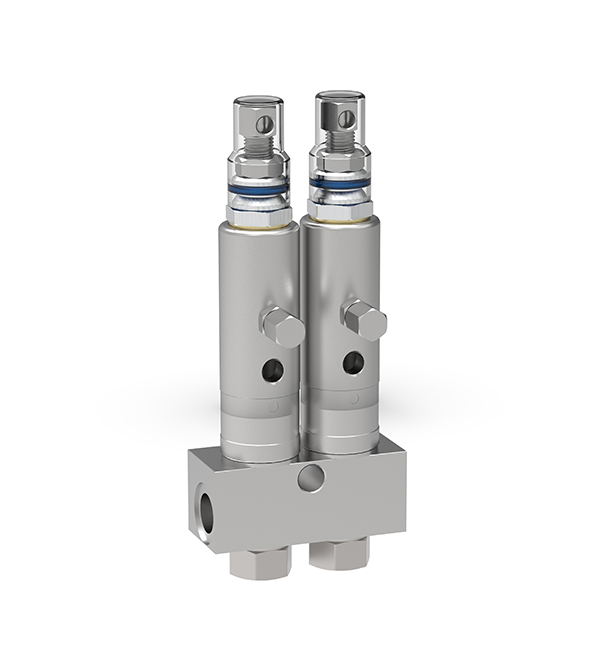

VL-1 single-line progressive distributor

Main lubrication lines + branch tubing system

Controller (timer or PLC-based control system)

This configuration provides a stable and efficient automatic grease lubrication system solution for mining drill rigs.

IV. Advantages of Lubestar Electric Grease Pump

1. Key Performance Features

Brushless DC motor drive

High efficiency, stable output, long service life

Multiple reservoir capacity options

Suitable for different drill rig models

Stable pressure output

Reliable operation under high vibration conditions

IP65 protection rating

Dustproof and waterproof for mining environments

Heavy-duty structural design

High durability and extended service life

V. VL-1 Single-Line Distributor

1. Product Advantages

Independent metered output for each lubrication point

Easy fault detection (blockage monitoring capability)

Expandable multi-point configuration

Stable and reliable grease distribution

The system is ideal for multi-point distributed lubrication applications such as rotary drill rigs.

VI. Working Principle of the Automatic Lubrication System

System operation process:

Controller activates lubrication pump based on preset time interval

Grease is delivered through the main line

VL-1 distributors sequentially distribute grease

Each lubrication point receives a metered amount of grease

System stops after completing one cycle

Result:

Unmanned operation + precise automatic lubrication

VII. System Architecture Design

1. Typical System Structure

Lubrication pump → Main pipeline → VL-1 distributor group → Lubrication points

2. Design Recommendations

Use 1–3 distributor groups depending on number of lubrication points

Adjustable grease output per lubrication point

Optimize pipeline layout to reduce pressure loss

Proper installation layout for easy maintenance access

VIII. Operation and Maintenance Guidelines

1. Grease Selection

High-adhesion grease recommended

Strong water resistance required

Recommended NLGI Grade 1 or 2

Suitable for heavy-duty mining applications

2. Daily Inspection Checklist

Check lubrication pump operating status

Inspect tubing for leakage or damage

Verify distributor operation

Confirm grease output at all lubrication points

3. Common Issue Prevention

Prevent dust ingress; regularly clean connectors

Prevent blockage; install filtration systems

Use low-temperature grease in cold environments

Maintenance Schedule

1）Weekly: system operation check

2）Monthly: pipeline and distributor inspection

3）Quarterly: grease replenishment or replacement

IX. Advantages of Automatic Lubrication Systems for Mining Drill Rigs

1.Reduced equipment failure rate

2.Extended service life of key components

3.Lower maintenance and labor costs

4.Increased machine uptime

5.Improved overall production efficiency
