Agricultural Machinery Lubrication System
›
EM2 Oil Lubrication Pump

EM2 Oil Lubrication Pump

The EM2 oil lubrication pump is a compact unit specially designed for applications with limited installation space. Its small size makes it an ideal solution for providing centralized lubrication protection in compact machinery.

The pump features a white translucent reservoir, allowing easy visual monitoring of oil levels at any time. A large-diameter filling port with a built-in filter ensures effective impurity interception, guaranteeing long-term safe and reliable equipment operation.

The EM2 oil lubrication pump is available in two configuration modes:

Standard Model – controlled by an external PLC. It does not include an internal control unit, making it a more economical option for lubrication systems.

Obter orçamento Baixar catálogo

Technical Information of EM2 Oil Lubrication Pump

TECHNICAL DATA
Outlet thread	G1/4
Rated flow	20ml/min
Operating preasure	7MPa
Reservoir Capacity	2L、7L
Lubricants	OIL
Voltage	12VDC、24VDC
Power Consumption	20W
Operating temperatures	-40 - 70℃

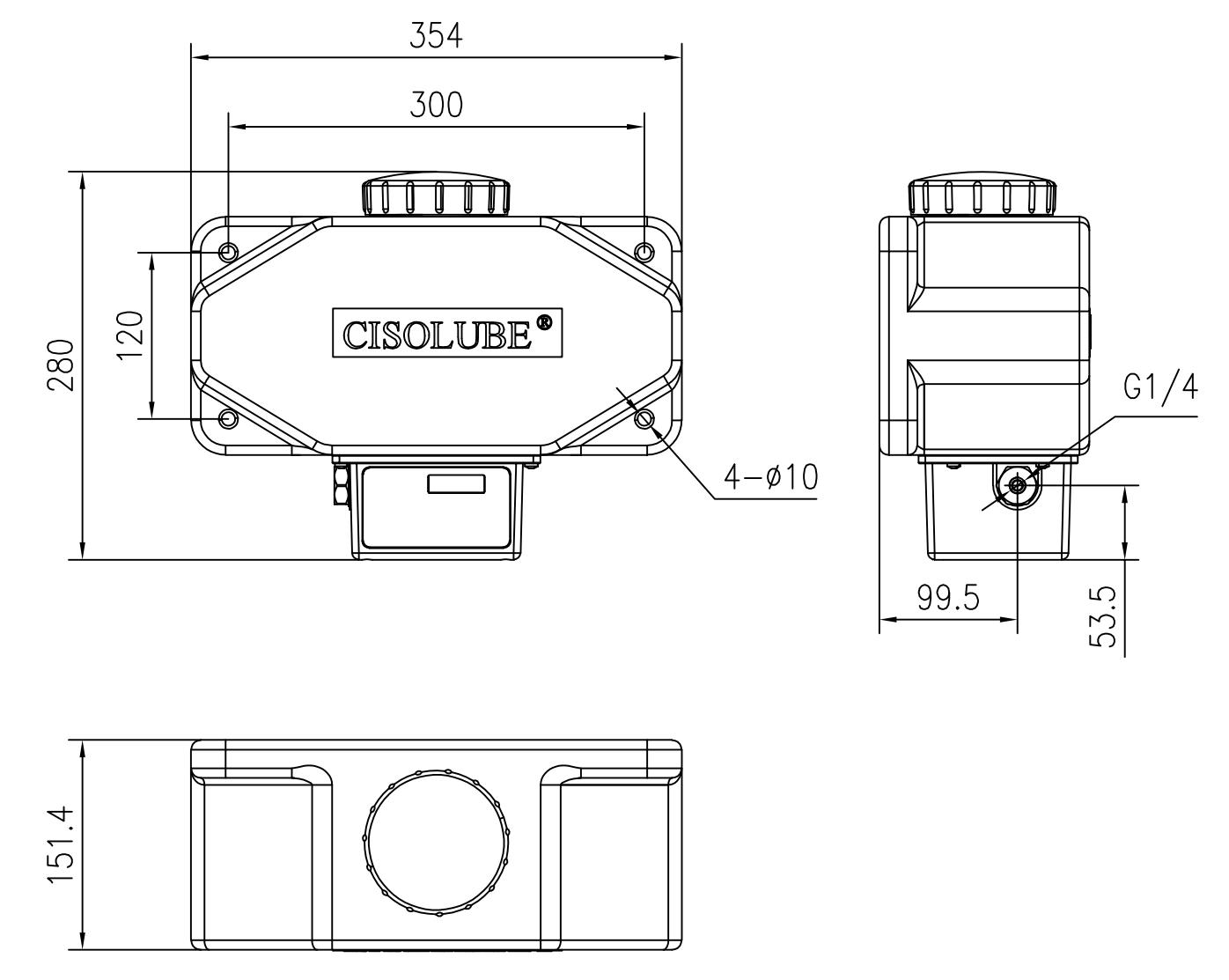

Dimensions(mm) of EM2 Oil Lubrication Pump


Features and advantages of EM2 Oil Lubrication Pump

Easy and quick operation
Top-cover design for convenient oil refilling
Built-in filter to effectively prevent impurities and ensure safe, reliable equipment operation

Application Industries of EM2 Oil Lubrication Pump

Urban Rail Transit
Regional Trains
Intercity Trains and Locomotives

Cisolube offer custom lubrication pumps with a wide selection, Contact now!
